Hey Guys,
Need some help trying to figure out what setup will work on my 2019 Trailboss. The stock wheels measure at 18x8.5, offset is +1.02", backspacing 6.02" and Tires are 275/65/18. What I am looking at putting on her is fuel cyclones measuring 18x9, offset is +1.00 , backspacing is 5.04", bolt pattern 6x139.7 and the tires are Toyo Open Country M/T 275/70/18. The question I have is will this setup Rub the lining inside or mud flaps, and I have been reading that there has been issues with the brake calipers rubbing on after market wheels. I don't want to run wheel spacers. So does anyone know if I will run into either one of this issues . Thanks

A lot of aftermarket wheels will have clearance issues with the “bump” on the
factory calipers. A 3/8in spacer is not a big deal👍

Last edited:
A lot of aftermarket wheels will have clearance issues with the “bump” on the
factory calipers. A 3/8in spacer is not a big deal👍
Ya that's what I have been hearing also. I want to get away from running spacers. Not a fan of em.

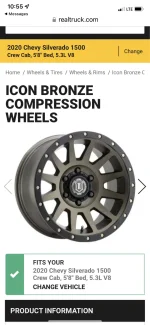

Just ordered new wheels … Icons bronze compression 18x9’s zero offset


Attachments

  • 78C006EE-AD71-40D3-BB28-AEA8C3D349FD.png
    473.3 KB · Views: 39
Ya that's what I have been hearing also. I want to get away from running spacers. Not a fan of em.
The studs are very long on these trucks and a 3/8"(5mm) spacer won't cause any issues. I've been running them since April or so of this year. I initially had cheap $20 cast ones I picked up from Autozone because the wheels were from my Avalanche and I wanted to get them on. I ended up buying a set of billet spacers that are specific 6x139.7 and 6x135 bolt patterns instead of the multiple slip fit pattern of the cast ones. They were under $30 for the set of 4. There's tons of thread left for the lugnut to grab onto.

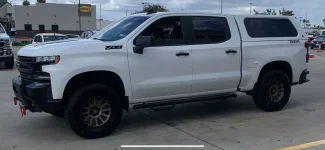

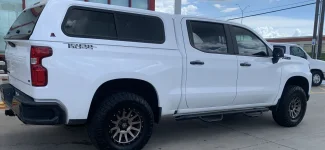

18x9 Icon compression dark bronze/black accents zero offset still on my 295/70/18’s…now just a touch of rubbing when reversing and full turn on mud flaps…


Attachments

  • EF65906B-FCBE-49EB-8F6B-A661524FC5CE.png
    1.4 MB · Views: 189
  • FD4A7B6A-CD9E-4B1C-96CE-46DA825D760C.jpeg
    225.4 KB · Views: 182
  • 6ED95A6C-2E8D-43DD-AA13-84AA4D01FC7B.jpeg
    337.1 KB · Views: 190
  • 198FBFA5-E747-4B8B-A4F6-A3BEF9C76A7E.png
    1.4 MB · Views: 187
