Transmission Pan and Differential Covers

[Bama_Lars]

I am looking at replacing my diff covers and transmission pan to add a drain plug to all. How can I tell what differential that I have?

Any recommendations on either? I am currently looking at PPE for all 3.



[Keller]

There is a thread on here somewhere that shows the visual differences between the two. Lemme see if I can find it.



[Keller]

Here ya go.

2024 trail Boss rear differential fix

2024 Trail boss, 3.0 Duramax, 10 spd automatic and 4WD (G80 SU7 Differential) I started looking thru all the old posts on issues Trail Boss Members had and found one that stuck in my head from PHXPHOTOG on a misadventure in Moab concerning rear diff problems. I too will travel to Moab this...

www.trailboss.org



[BigBlackie_'25TB]

I am looking at replacing my diff covers and transmission pan to add a drain plug to all. How can I tell what differential that I have?

Any recommendations on either? I am currently looking at PPE for all 3.

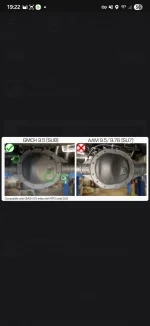

Here is info on the type of rear diff ya may have on your rig. I have both the PPE rear diff cover and PPE transmission extra capacity (2.5 additional quarts) pan for the 10L80. The pan I purchased is for either the 5.3 or 6.2. Few pics of my pan and diff with the schematic which should help you determine which axle you have so ya know the correct rear diff.

Additionally, what I ended up doing was contacting GM via email and requesting my individual SPECIFIC Vehicle Build Documentation Sheet.This has all the information referencing option codes, etc., so you don't have to second guess anything about what your rig actually has regarding anything.



[Bama_Lars]

Thanks guys! Was it difficult to loosen the exhaust to install the trans pan?



[BigBlackie_'25TB]

Thanks guys! Was it difficult to loosen the exhaust to install the trans pan?

I'm not gonna lie, but, yes, it was a pain in the ass! Haha!



[texanlife4]

Is there enough room if you loosen the trans mount bolts and jack up the trans, or do you have to loosen the exhaust? I raised the trans on my old 2011 Silverado but wasn't sure if it was an option on these trucks. I hate how they always put it so close and make it a pain to remove the trans pan.
